Thule AeroBlade Edge Roof Rack Crossbars (w/Locks) - $150 (Spokane South Hill)
South Regal Street near East 53rd Avenue
condition:
excellent
make / manufacturer:
Thule
model name / number:
TH-7502 and TH-7503
size / dimensions:
See Detailed Info
QR Code Link to This Post

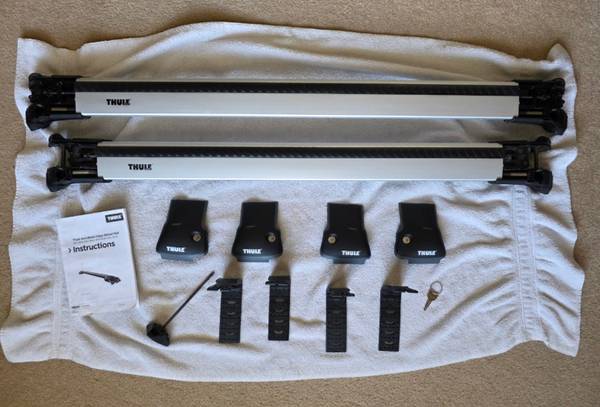

In excellent condition - barely used! Includes both Thule Aeroblade Bars and all original parts. Includes tensioning tool, 4 Thule Locks and 1 Key. Also includes original installation instructions / manual.
I had this rack mounted on my 2021 Subaru Crosstrek. The bars are somewhat adjustable in length and should fit a number of similar sized vehicles.
The AeroBlade Edge
This single Thule AeroBlade Edge crossbar lets you replace a damaged crossbar or add another crossbar to your existing roof rack to help distribute the weight of a load on your roof. The crossbars mounts directly to your vehicle's elevated, factory side rails to create a roof rack that is quieter, stronger, and more aerodynamic than almost anything on the road. The low-profile, arced shape of the crossbar couples with the unique WindDiffuser stripping to produce a bar that is so quiet you'll forget you even have it on your car. Many factory and aftermarket bars produce an annoying whistle that can only be quelled by adding a fairing to the system. Not only is a fairing unnecessary with the AeroBlade Edge but adding one would actually make it louder and less aerodynamic.
WindDiffuser Technology
A built-in T-track sits along the top of the bar, near the front. When no accessories are mounted, the included WindDiffuser rubber stripping covers the T-slot. (You can also cut the stripping so that it can be placed in the slot around any carriers or accessories that are mounted.) The rubber stripping serves to keep dirt and grime out of the T-slot and provides a little scratch-resistant cushion for any mounted items.
The unique aspect of the WindDiffuser, which comes standard with the AeroBlade Edge, is the raised, angled vectors (or ribbing). This textured surface disrupts and redirects the air flowing over the bar, tripping it to create turbulence and clean air release. The result is less wind noise and drag, little to no annoying whistle, and a more aerodynamic crossbar. In fact, the AeroBlade Edge crossbar has been shown to produce 90 percent less sound energy than an elliptical Thule Aero bar, making it the quietest style of load bar in the industry.
Aerodynamic Design
Thule took a note from the manufacturers of high-performance cars, such as Ferrari and Maserati, and designed the AeroBlade Edge with a Kammback (or Kamm-tail) style. This crossbar does not have a full-length teardrop-type tail; rather, it is cut off, leaving a square end at the rear of the bar. The aerodynamic effect is essentially the same as it would be if the bar continued into a full teardrop shape. Air continues to move over it in a streamlined fashion, flowing along the bar as if the tail were complete. Because there is no tail, though, the bar is smaller and weighs less.
Strong, Durable Construction
The Thule AeroBlade Edge load bar is constructed of extruded aluminum to ensure an extra-sturdy roof rack system. During the extrusion process, metal is shaped to form a complex BoxBeam design on the interior of each bar, as seen in the cross section of the AeroBlade Edge. Each fold adds to the overall strength and rigidity of the bar. This process creates a crossbar that is primarily hollow but still reinforced for added strength. The result is a bar that can withstand more than 800 lbs. of force yet weighs so little that it takes up only a slight portion of your load capacity.
AeroBlade Edge Installation
The mounting style of the AeroBlade Edge offers the most surface contact of any side-rail-mounted crossbar, ensuring that the roof rack is solid and secure. To install the bar, first measure the diameter of your roof rack side rails. There are 4 notches in the rubber-coated steel mounting straps to accommodate side rails of different sizes. Once you determine the appropriate notch to use, remove the crossbar covers and connect the straps to the feet. Wrap each strap under and around the side rail and snap it into place on the posts at the top of the foot. To complete installation, use the included tool to tighten the straps around the bars until they audibly click and then replace the crossbar covers.
Mounting Roof Rack Accessories in T-Slots
Mounting roof rack accessories is quick and easy with the AeroBlade Edge. Simply remove the crossbar cover, slide it into your accessory, and replace the cover. Some accessories may require Xadapt hardware (sold separately), and trimming of the WindDiffuser strip may be required to accommodate accessory mounting hardware. To deter theft of your carriers - and the crossbar - add Thule One-Key System lock cylinders (sold separately) to the covers.
